GF 80M With Pump
Salient Features Of Pump
* Volute & Spilit type casing is scientifically designed to produce a smooth flow, With gradual changes in velocity, ensuring the efficiency of the pump.
* COOLING : • In water cooled, engine is continuously cooled by flow of water.
* STARTING : The engine is designed for starting by hand. Electric start provision can also be provided against specific requirement.
* DRIVE : Standard power take off is from flywheel side. Power take off from gear end at half speed can be provided on demand.
Other Specifications

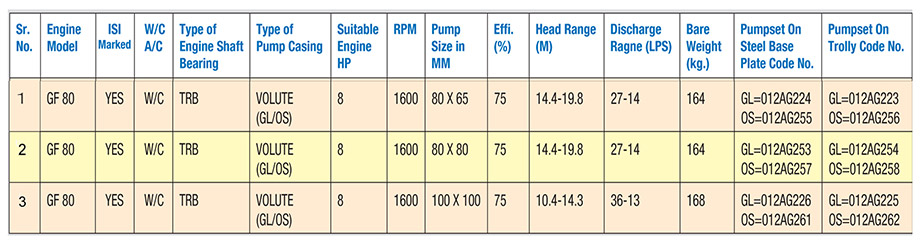

| Sr.No. | Engine Model | ISI MARKED | W/C A/C | Type of Engine Shaft Bearing | Type of Pump Casing | Suitable Engine HP | RPM | Pump Size in MM | Ef. (%) | Head Range (M) | Discharge Range (LPS) | Bare Weight (kg.) |
| 1 | GF80 | YES | W/C | TRB | VOLUTE (GL/OS) | 8 | 1600 | 80 X 65 | 75 | 14.4 - 19.8 | 27 - 14 | 164 |
| 2 | GF80 | YES | W/C | TRB | VOLUTE (GL/OS) | 8 | 1600 | 80 X 80 | 75 | 14.4-19.8 | 27-14 | 164 |
| 3 | GF80 | YES | W/C | TRB | VOLUTE (GL/OS) | 8 | 1600 | 100 X 100 | 75 | 10.4 - 14.3 | 36 - 13 | 168 |
